Shut off water, mount the faucet, connect lines, install drain, then flush.
If you want crystal-clear drinking water and a clean install that lasts, you’re in the right place. I’ve installed dozens of home RO systems, and this step-by-step guide shows you how to install reverse osmosis water filter hardware like a pro, avoid common mistakes, and keep it running at top performance for years.
Source: thespruce.com
How Reverse Osmosis Works (And Why It Matters Before You Install)
Reverse osmosis forces water through a semi-permeable membrane that blocks dissolved salts, metals, and many contaminants. Typical systems include a sediment filter, a carbon block, the RO membrane, a storage tank, and a post-filter. Some add remineralization or UV.
Knowing what each stage does helps you pick the right location, connect the right tubes, and plan filter changes. Look for systems certified to NSF/ANSI 58 for performance and materials safety. Most units run best at 40–80 psi cold water feed and need room under the sink for the manifold and tank.
Source: familyhandyman.com
Tools And Materials You Will Need
You do not need a shop full of tools. Here is the short list I use on every job.
- Adjustable wrench and channel-lock pliers for valves and adapters
- Drill with bits for sink/countertop and a step bit for stainless steel
- Safety glasses and gloves for drilling and cutting
- Utility knife or tube cutter for clean, square cuts on tubing
- Plumber’s tape for threaded connections on the tank and fittings
- Marker, tape measure, and a small level to line up the faucet and brackets
- Towel, small bucket, and rags to catch drips
- Optional: food-grade silicone grease for O-rings, leak detector solution, TDS meter
Have all parts from the kit ready: faucet, tank, manifold, filters, membrane, color-coded tubing, feed adapter, and drain saddle. This saves time and helps you master how to install reverse osmosis water filter hardware in one pass.
Source: thespruce.com
Plan Your Setup And Choose A Location
Before you twist a valve, map your layout. Good planning is half of how to install reverse osmosis water filter systems right.
- Confirm under-sink space and door swing. The tank often sits on the right or back.
- Choose a faucet spot. Many sinks have a knock-out. If not, pick a clear corner.
- Check the drain line path. The drain saddle must go above the P-trap on a straight section.
- Find the cold-water line and shutoff. You will add a feed adapter at that valve.
- If your water pressure is low, consider a permeate pump to boost efficiency.
Quick PAA-style answers:
- Do I need an air-gap faucet? Many codes require it. Air-gap faucets reduce backflow risk from the drain into the RO.
- Can I install the system in a basement and run a line up? Yes, but long runs reduce flow. Use 3/8-inch tubing for the faucet line if possible.
Source: 33buckets.org
Step-By-Step: How To Install Reverse Osmosis Water Filter Under The Sink
Follow these steps in order. Keep lines tidy and cuts square. This is the cleanest path for how to install reverse osmosis water filter equipment at home.
1) Shut off and prep
- Turn off the cold-water shutoff under the sink.
- Open the kitchen faucet to relieve pressure.
- Place a towel and a small bucket under the valves.
2) Add the feed water adapter
– Disconnect the existing cold faucet hose from the shutoff valve.
- Thread the RO feed adapter onto the shutoff. Wrap threads with plumber’s tape if needed.
- Reconnect the faucet hose to the adapter’s top port.
- Hand-tighten, then snug with a wrench. Do not over-tighten.
3) Mount the RO faucet
- Pick your spot on the sink or counter. Check for clearance underneath.
- For stainless, use a step bit and go slow with light pressure. For stone, use the proper diamond bit and tape your mark to reduce chipping.
- Install the faucet per the kit. Use the rubber gasket topside, washers and nut below. Keep it straight and snug.
Pro tip: Place a magnet or paper towel under the drilling area to catch shavings. It makes cleanup easy.
4) Install the drain saddle
- Choose a straight section of the sink drain above the P-trap.
- Drill the small hole per the kit. File any burrs.
- Align the drain saddle hole exactly over the pipe hole.
- Tighten the clamp screws evenly. Do not crush the pipe.
5) Position the tank and manifold
- Wrap plumber’s tape on the tank stem. Install the tank valve hand-tight, then a little more.
- Place the tank upright on a firm, level surface.
- Mount the RO manifold to the cabinet wall if the kit allows. Leave room to change filters.
6) Insert filters and membrane
- Check O-rings are seated in housings. Lightly grease with food-grade silicone if the manufacturer allows.
- Install sediment and carbon filters in the correct order.
- Open the membrane housing, insert the RO membrane, and lock the cap.

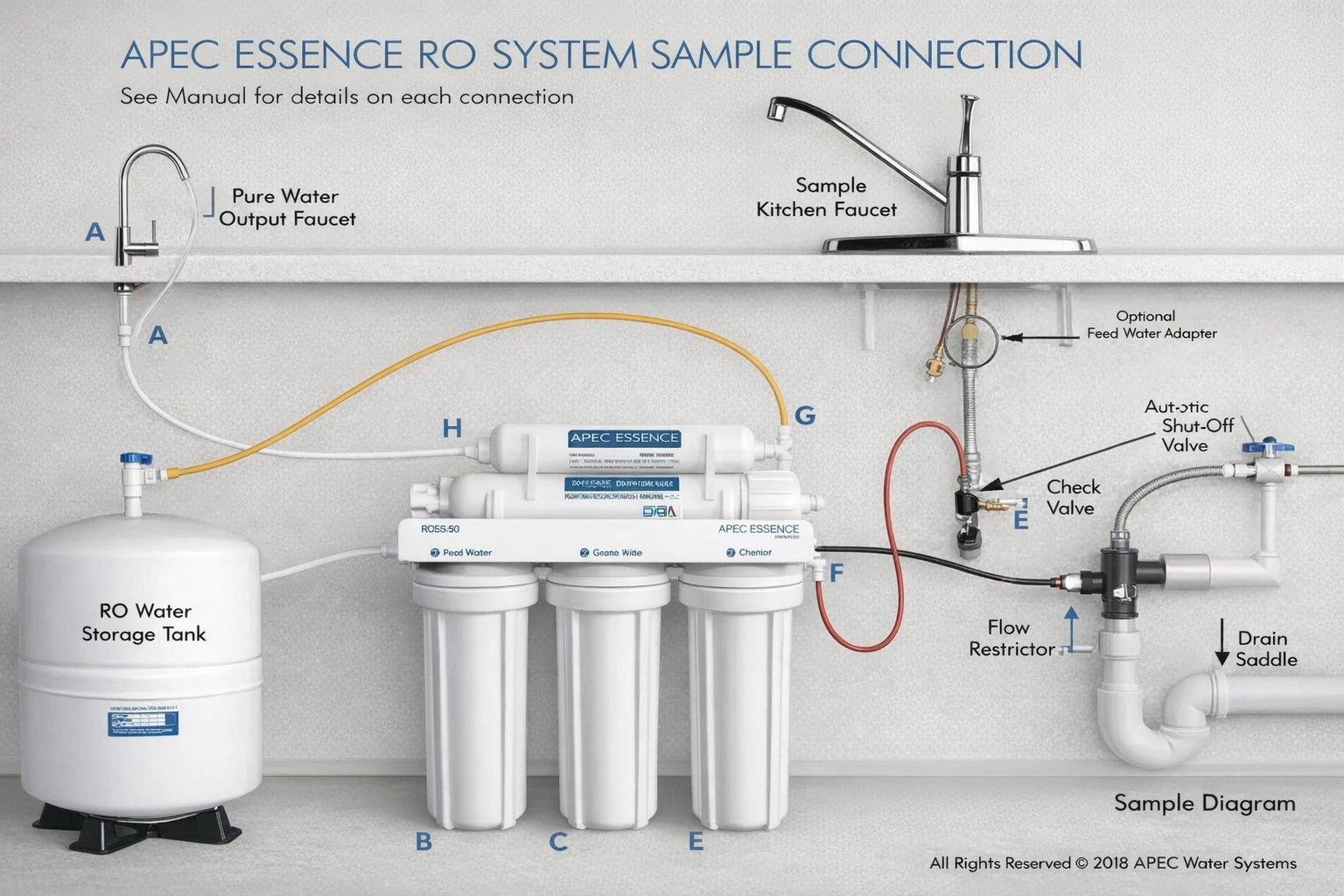

7) Connect color-coded tubing
Colors vary by brand, but the flow is the same. Push tubing fully into quick-connect fittings.
- Feed line from adapter to the system inlet.
- Black drain line from the flow restrictor to the drain saddle.
- Blue line from the system to the storage tank valve.
- Another blue or white line from the system to the faucet.
Tip: Cut tubing square with a tube cutter. If a fitting leaks, remove the tube, recut square, and reinsert fully.
8) Turn on and leak-check
- Close the RO faucet handle.
- Slowly open the cold-water shutoff and the RO feed valve.
- Watch every joint. Tighten only if you see drips.
This exact flow is how to install reverse osmosis water filter connections without headaches. Work slowly and double-check each tube.
Source: raindanceh2ostore.com
Startup, Flushing, And First Taste
Your tank will fill over 1–3 hours the first time.
- Once the tank is full, open the RO faucet and drain the first full tank.
- Close the faucet and let it refill. Drain a second full tank before drinking.
- Check for leaks a second time after a few hours and again the next day.
Use a TDS meter to verify performance. Many systems reject 90%+ of dissolved solids. If your numbers are off, recheck the membrane seating, flow restrictor, and tank pressure. These steps lock in how to install reverse osmosis water filter systems and get the best taste.
Source: thespruce.com
Maintenance, Filter Change Schedule, And Costs
A good install is only the start. Plan simple upkeep.
- Sediment and carbon pre-filters: replace every 6–12 months.
- Post-filter: replace every 6–12 months.
- RO membrane: replace every 2–3 years, depending on TDS and usage.
- Storage tank: sanitize annually when you change filters.
- Tank air pressure (empty): set to about 5–7 psi.
Typical filter sets cost modestly each year. Membranes last longer. Keep a log. This habit is part of how to install reverse osmosis water filter systems the right way, long term.
Source: h2odistributors.com
Troubleshooting And Common Mistakes To Avoid
Common issues and quick fixes:
- Slow flow. Check tank pressure, pre-filters, and membrane. Ensure the tank valve is open.
- Bad taste after install. Flush two or three full tanks. Replace carbon if overdue.
- Gurgling drain. Normal at first. If it persists, check the drain saddle alignment and tubing slope.
- Leaks at push fittings. Remove the tube, cut square, and reinsert all the way in.
- Air-gap faucet drips. Often normal during production. If constant, inspect the drain line for kinks.
Mistakes to avoid when learning how to install reverse osmosis water filter gear:
- Mounting the drain saddle below the P-trap.
- Using the hot line as the feed.
- Overtightening faucet or saddle clamps.
- Kinking tubing or leaving long loops that can snag.
Source: youtube.com
Safety, Building Codes, And Warranty Notes
Check local plumbing codes. Some areas require an air-gap faucet or a backflow device. Many brands require cold water only and pressure within spec to keep the warranty valid.
Use safety glasses while drilling. Unplug nearby appliances when handling water lines. If your shutoff valves are old or corroded, consider replacing them before you start. Following these basics is part of how to install reverse osmosis water filter systems with confidence and care.
Real-World Tips From The Field
After many installs, a few habits always pay off.
- Label each tube at both ends. It speeds up future maintenance.
- Mount the manifold where you can change filters without scraping your knuckles.
- Put a thin cutting board under the tank to keep it off a damp cabinet floor.
- Add a simple leak detector under the system for peace of mind.
- If you have very hard water, pretreat with a scale filter to extend membrane life.
These small moves turn how to install reverse osmosis water filter steps into a clean, service-friendly setup you’ll appreciate every day.
Frequently Asked Questions of how to install reverse osmosis water filter
How long does it take to install an RO system?
Most DIY installs take 1–3 hours. Drilling the faucet hole and routing the drain line adds the most time.
Do I need a plumber to install it?
Not always. If valves are in good shape and you are handy with basic tools, you can do it yourself. Call a pro if your shutoffs are corroded or if you need to drill stone.
What is the ideal water pressure for RO?
Aim for 40–80 psi on the cold feed. Below 40 psi, consider a booster or permeate pump.
How much water does RO waste?
Many systems run around 3:1 waste-to-pure ratio. A permeate pump or high-efficiency kit can improve that.
Can I connect RO water to my fridge or ice maker?
Yes. Run a dedicated 1/4-inch or 3/8-inch line from the RO system to the fridge. Use a check valve as directed by the manufacturer.
How often do I replace filters and the membrane?
Pre- and post-filters: every 6–12 months. The membrane: every 2–3 years, based on taste and TDS readings.
Is remineralization needed?
It is optional. Many people like the improved taste and slightly higher pH from a calcite filter.
Conclusion
You now know how to install reverse osmosis water filter equipment from start to finish, plus how to maintain it for clean, great-tasting water. Plan the layout, drill with care, connect lines cleanly, and flush well. Then keep a simple filter schedule and enjoy the results every day.
Ready to get started? Use this guide during your install, bookmark it for maintenance, and share your setup questions or success in the comments.
